6mm Ultra-Miniature Claw-Pole Permanent Magnet Micro Stepper Motor With 4 Pins
6mm micro stepper motor with 4 pins
VSM0656 is a precision mini stepper motor with a out dia 6 mm, 7 mm and 7mm length, 0.8mm shaft diameter, the shaft length can be according to the demand change appropriately, can also be equipped with gear, pulley, worm, screw, etc. The corresponding output device.
Because of its small size, high precision, easy to control and other excellent characteristics, so this micro stepper motor is widely used in the camera, optical instruments, lenses, precision medical devices, automatic door locks and other fields.
The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and other forms.
The mounting bracket can be changed according to the customer's request.
6mm micro stepper motor parameter sheet:
| PRODUCT NAME | 6 MM MICRO STEPPER MOTOR |
| MODEL | VSM0656 |
| MAX. STARTING FREQUENCY | 1300 PPS min. (AT 3.3 V DC) |
| MAX. SLEWING FREQUENCY | 2500 PPS min. (AT 3.3 V DC) |
| PULL IN TORQUE | 0.8gf-cm min. (AT 500 PPS , 3.3V DC) |
| PULL OUT TORQUE | 1.0gf-cm min. (AT 500 PPS , 3.3V DC) |
| INSULATION CLASS | CLASS E FOR COILS |
| INSULATION STRENGTH | 3.0mA (max.) |
| INSULATION RESISTENCE | 1 MΩ (DC 100 V) |
| OPERATING TEMPERATURE RANGE | -10~+60 ℃ |
| OEM & ODM SERVICE | AVAILABLE |

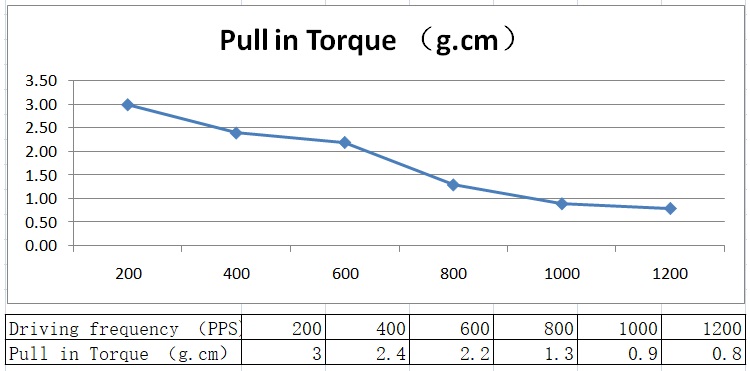

6mm micro stepper motor torque curve:

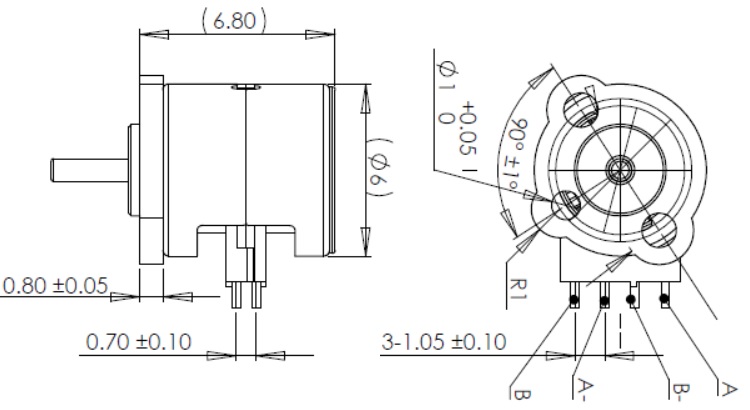

6mm micro stepper motor outside drawing:

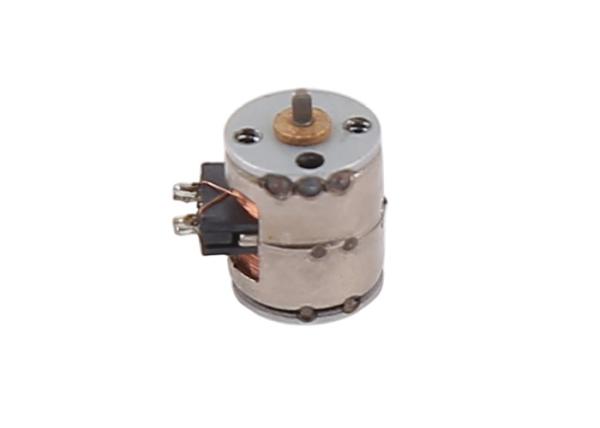

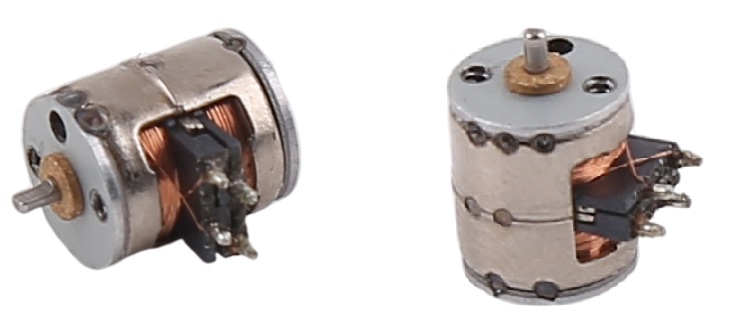

Product display:
Service and Customization:
This kind of small motor is mainly used in cameras, lenses, optical instruments and other fields, with small size and precise control.
User can customize the motor resistance, installation size, outlet shape and size.
For special occasions, the planetary gearbox can be matched with the motor to obtain low speed and high torque. The needs of customers are the direction we should strive for, and meeting the needs of customers will be our highest pursuit. Please keep in close contact with us.
